Concepts

1. relation: a relation consists of a relation schema (column heads of a table) and a relation instance (the table)
2. relation schema: relation's name, name of each field/column/attribute, domain of each field.
3. relation instance: a set of unique tuples/records
4. cardinality: # of tuples
5. degree/arity: # of fields
6. domain constraints: the value of a field must reside in a range specified by the domain constraints.
7. database instance: a collection of relation instances
8. integrity constraints (ICs): a condition specified on a database schema and restricts the data that can be stored in a database instance.

PostgreSQL domain types

SQL (Structured Query Language)

1. Table: a relation is called a table in SQL.
2. SQL DDL (Data definition Lanaguage): a subset of SQL that is used to create, modify (insert), delete a table.
3. Login to PostgreSQL:
   Usage PostgreSQL in Linux: postgresql create a separate user called "postgres". By default only this user (and root) can access this PostgreSQL.
   [Different from MySQL], database is created outside postgre prompt.

                   nan$: sudo -i -u postgres
                   postgres$: createdb myDB
                   postgres$: dropdb myDB
                   postgres$: psql myDB # enter the database
                   myDB=#:


4. PostgreSQL commands:


                   # inside myDB=#:
                   \l # list all databases
                   \c db_name # connect to different db
                   \dt # list all tables
                   \dn # ??????


5. SQL syntax:
   Inside the interactive client terminal, a SQL command is executed after entering a ;
   SQL keyword is not case-sensitive. But using capital letters by convention.

                   -- get the current date
                   SeLeCt CuRrEnT_dAtE;
                   -- get current postgresql version
                   SELECT version();


Types of ICs and Table Creation

1. Key constraints: specify a subset of fields are unique. One of the key can be designated as the primary key.

                   CREATE TABLE Student ( sid CHAR(20),
                                       name CHAR(30),
                                       age INTEGER,
                                       gpa REAL,
                                       CONSTRAINT name_age_unique UNIQUE (name, age),  /*contraint name_age_unqie is optional*/
                                       CONSTRAINT studentKey PRIMARY KEY (sid));


2. Foreign key constraints: a relation has a field that refer to the primary key (cannot be other fields) defined in another relation.
   Foreign key field can also refer to the field of the same relation. For example, a student relation has a field called partner.

                   CREATE TABLE Enrolled ( studid CHAR(20),
                                           grade CHAR(10),
                                           PRIMARY KEY (studid, grade),
                                           FOREIGN KEY (studid) REFERENCES Student);

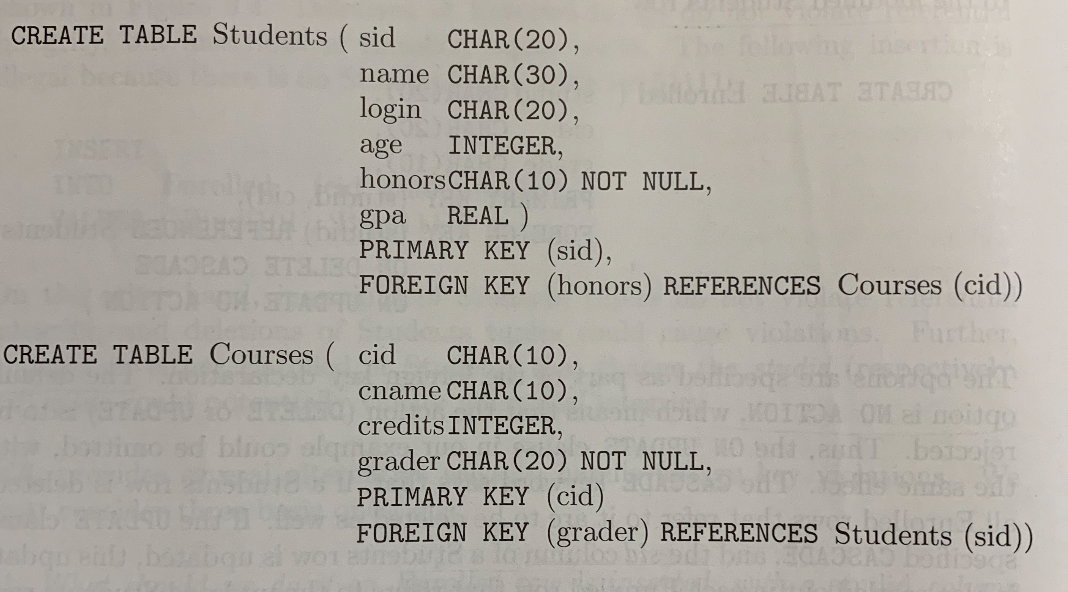

3. Deferred vs. Immediate constraints:
   Two relations refer to each other as foregin keys. Without the creating of another, the one cannot be created. Then we need to defer the constraints.
   We construct a transaction. Within the transaction, multiple relations are modified. Then manually commit this transaction.

4. Table constraints:
5. Assertion:

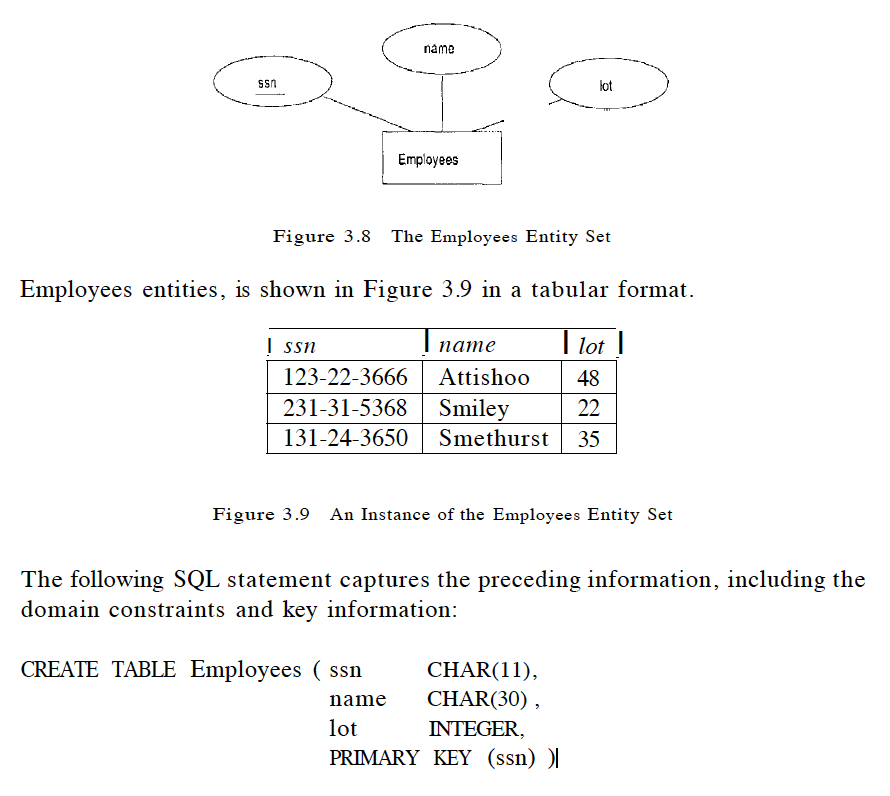

1. Entity to Relation

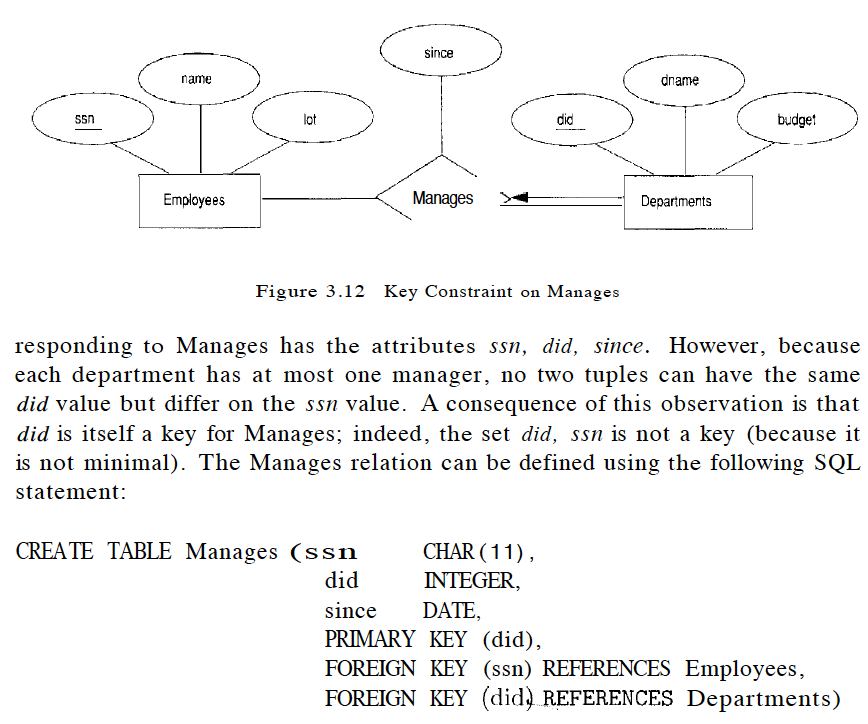

2. Relationship with key constraints (at most once)

   1). Because a entity join a relationship at most once, we can setup the key of the relationship's table as the foreign key to the entity's primary key.

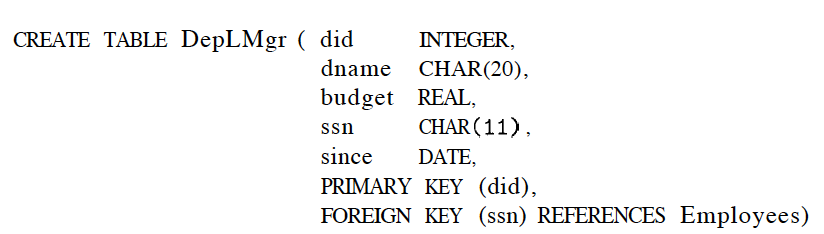

   2). Merge the relationship into the entity.



3. Relationship with participation constraints and key constraints(exactly once)

   Merge the relationship into that entity and set foreight key not null.

4. Relationship with participation constraints (at least once)

   Table assertion

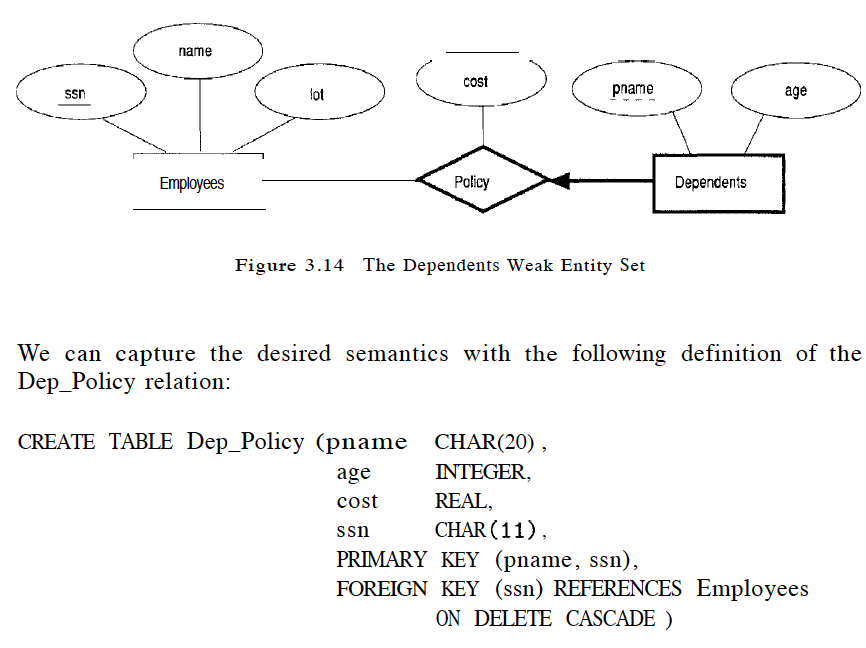

5. Weak Entity



1. Ramakrishnan - Database Management Systems 3rd Edition (chapter 3)
